Compact Structure Uniform Feeding Machine Mining Vibration Feeder

Compact Structure Uniform Feeding Machine Mining Vibration Feeder

Introduction
Compact Structure Uniform Feeding Machine Mining Vibration Feeder is widely used in metallurgy, coal, mineral processing, building material, chemical industry and other industry using crushing and screening combined equipment. It is a linear vibrating equipment which is used for feeding kinds of materials such as block, granule, and powder uniformly and continuously. It can feed material for belt conveyor, vibrating conveyor, bucket elevator, vibrating screen, crusher etc.

Working Principle
The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.

Advantages and Features

1. High adaptability to support other equipment in a production line
2. Strong versatility to be available in various application
3. Hanging type and seated type vibration feeder can be customized

4. Enclosed type can prevent dust pollution and improve the working condition
5. Simple structure,light weight,compact design,space-saving

6. Uniform feeding , superior continuous feeding performance

7. High feeding rate,max. Feeding rate can reach up to 2000tph

8. Complete specifications to meet different throughput demand

9. Large particle size can be handled,max. Feeding size can be 420mm

Technical data:

Selection Conditions

limestone vibratory feeder

cement vibrating feeder

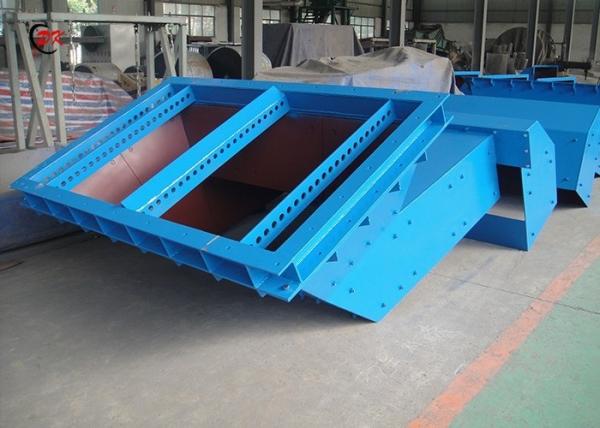

Compact Structure Uniform Feeding Machine Mining Vibration Feeder Images
